Tradeweld

TIG 2000P Digital ACDC 220VAC 200A Inverter Welder

TIG 2000P Digital ACDC 220VAC 200A Inverter Welder

Regular price R 16,428.00
Regular price R 22,998.00 Sale price R 16,428.00
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left (Contact for availability)

Features:

• Manufactured to the highest standards using cutting-edge 50 KHZ high-frequency CPU inverter technology.
• Digital Display
• 32 Bit High-Speed MCU Control (Store Welding Parameters)
• Tig Pulse Mode
• 4T / 2T Function
• With Pre Flow > Arc Start Current > Up
Slope > Peak Current > Base Current > Arc End Current > Downslope > Pulse Frequency > Pulse Ratio > Post Flow > Clearance Width > Ac Frequency
• Foot Pedal Control
• MMA Mode With VRD Control
• Over Current & Overheating Protection
• Arc Initiating: H.F. Oscillating
• Preflow Gas: 0.1-1.0
• Postflow Gas: 0.1-15

Specifications:

OUTPUT
• PROCESS: TIG / MMA
• ELECTRODE SIZE: 1.6 – 4.0mm
• MAX STEEL THICKNESS: 6mm
• AMPS: TIG / MMA 5-200 20-180
• VOLTS: TIG / MMA 18 27.2
• DUTY CYCLE: 60%@200A
• OCV: 56

INPUT
• VOLTS: 220V±15% 50/60HZ
• AMPS: TIG / MMA 20.5 27.8

GENERAL
• COOLING: FAN
• IP: 23
• DIMENSIONS (MM): L-475xW-200xH-410
• NET WEIGHT (KG): 15

Included:

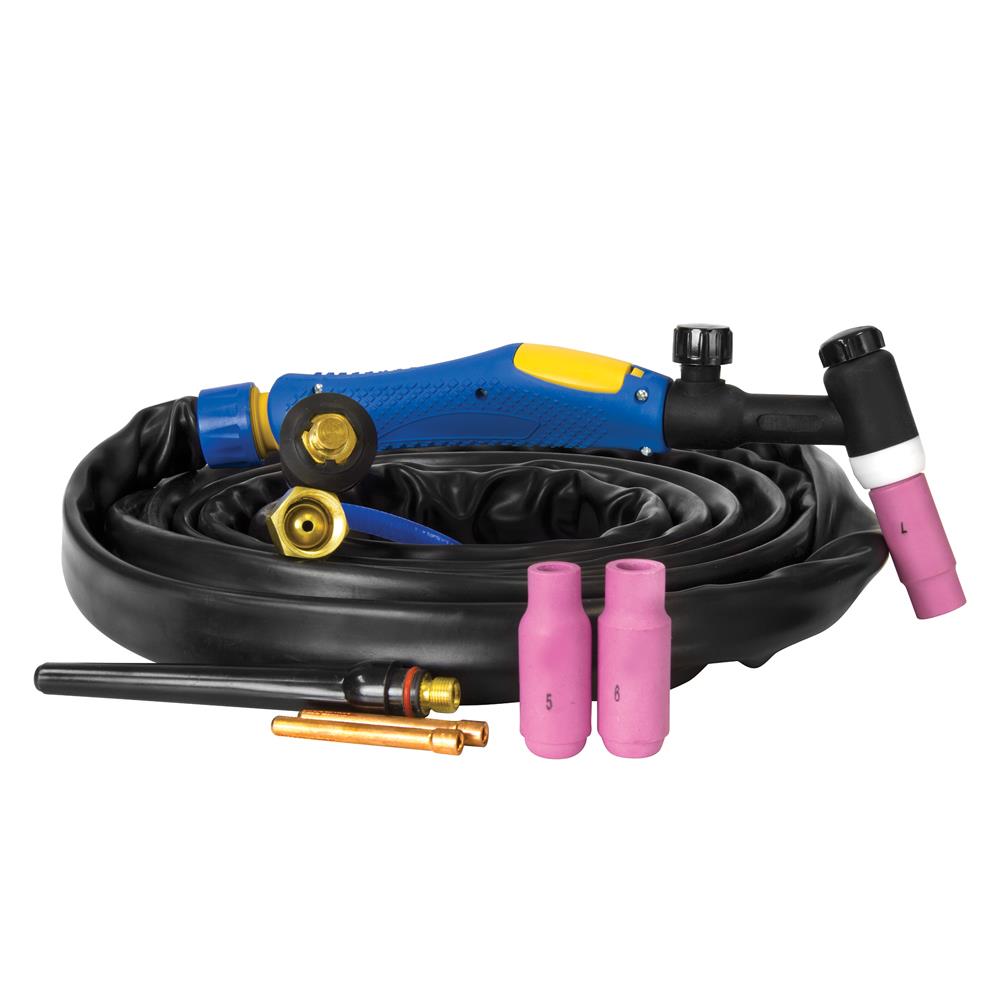

• TIG WP17 Torch
• Welding Cable Set
• Foot Remote Pedal

Voltage AC 220VAC
Welding Process TIG
Barcode 6003398094594
